The manufacturing company SELTON LLC, having a sufficient level of employee qualifications, certified production and a fleet of modern CNC machines, offers you custom metalworking services of any complexity, namely:
Metal cutting
INTECUT -5, plasma cutter, δ – 5-100mm.,
F1530T, laser δ < 8mm., table 1500*3000 mm., accuracy – 0.5 mm.,
HBS-1018 W band saw Ø<250 mm.,
RGS 3150×3, guillotine 3130*3 mm. stainless steel – 1.5 mm.
Perforation

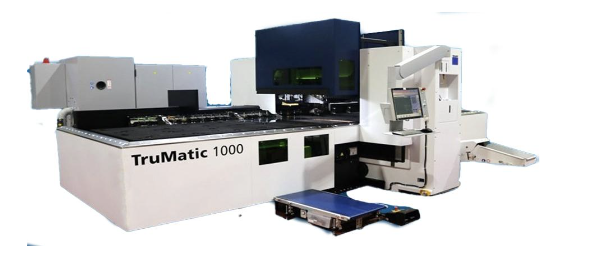

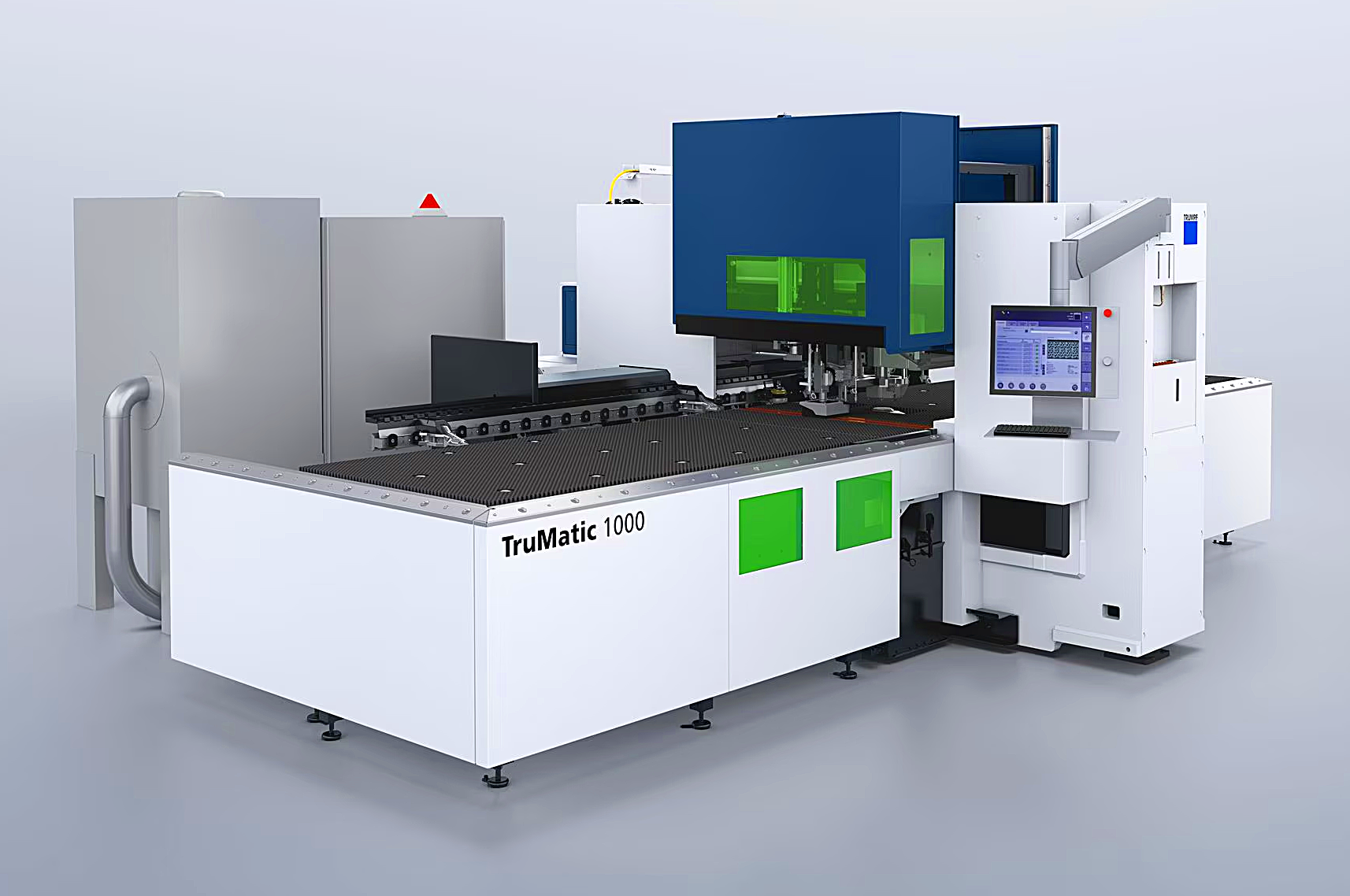

Trumpf TruMatic 1000. CNC laser punching press max. δ< 6.4 mm., (AL <5.0 mm., Cu <6.0 mm.), table 1250*2500 mm., laser 3 kW.
Rolling
RME 70/153 – rollers l = 1530 mm., δ< 1.2 mm.;
4R HMS 1270*130 – rollers l = 1270 mm., roller Ø 130 mm,. δ < 5 mm.;
Edge bending

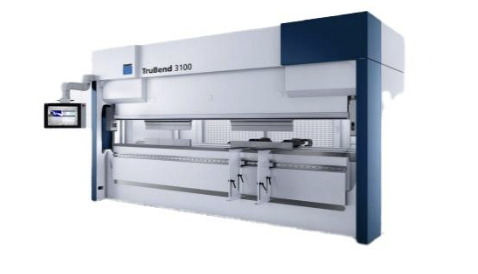

Trumpf TruBend 3100, CNC press δ< 2.5 mm., length -3060 mm., force – 100 tons.;
Stamping/pressing
OMA mod.666B – force – 100 tons,
KG2132 – force 160 tons;
Welding
Argon, Laser, Electrode, Semi-automatic.
Turning, milling, and grinding
1M63(lathe) Ø over the bed – 630 mm,
Ø over the support – Ø 350 mm, VMC – 1500 mm.
6T10 (milling) table 1250*630*400 mm.,
371M1(grinding) table – 630*200*320 mm.;

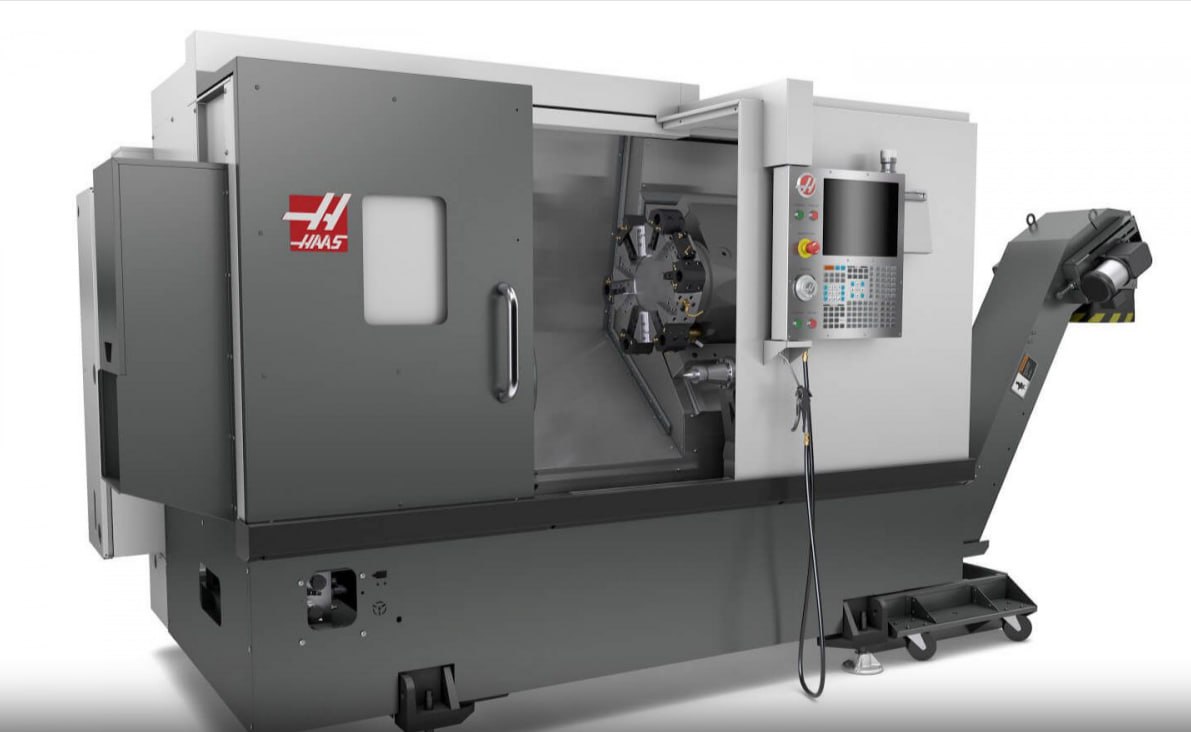

ST-20, Haas turning center
X-axis travel – 213 mm.,
Z-axis travel – 572 mm,.
chuck size Ø – 210 mm.,
maximum bar Ø – 64 mm,.
max. Ø part – 533 mm.,
accuracy – +/- 0.005 mm.;
ST-30Y, Haas turning center
X-axis travel – 239 mm.,
Y-axis travel -± 51 mm,.
Z-axis travel – 826 mm.,
Chuck size Ø – 254 mm.,
Maximum bar Ø – 76 mm.,.
Max. part Ø – 533 mm.,
Accuracy – +/- 0.005 mm.;
VF-5/40XT, Haas vertical lathe
Table size X,Y – 584×1575 mm.,
X-axis travel – 1524 m.,
Y-axis travel – 660 mm.,
Z-axis travel – 635 mm.,
Distance between table surface
and spindle end face – 107-742 mm.,
Max. part weight – 1814 kg.;
UMS-1000, Haas five-axis machining center
table surface Ø – 635 mm.,
B-axis tilt range, degrees – +120,-35,
C-axis rotation, degrees – 360,
X-axis travel – 1016 mm.,
Y-axis travel – 635 mm.,
Z-axis travel – 635 mm.,
distance between table surface and
spindle end face – 102-737 mm.,
max. part weight – 454 kg.
Sandblasting
We do it quickly and efficiently.
Painting
You can additionally order a service for painting parts after metal processing.
Laser engraving
A powerful laser engraver with an adjustable laser head allows you to engrave almost any metal product.
Our services will be useful for:
- Developing new equipment
- Prototyping
- Launching serial production
- Repairing products when the required part cannot be ordered, and other manufacturers do not undertake the production of single batches
Custom metalworking from our company’s specialists will be useful to you when developing new modeling (prototyping) equipment or launching mass production, repairing products when the required part cannot be ordered and other production facilities do not undertake the manufacture of single batches. The use of professional machine tools and strict adherence to technology ensures that metal processing will be performed according to the dimensions you specify as a customer. Thanks to an individual approach, it is possible to manufacture structural elements of non-standard shapes. Before starting work, you provide drawings and a sketch of the finished model. If the documents are not available, designers and engineers are involved in their creation. When developing a drawing, we take into account the peculiarities of the future product’s operation, regulatory documents and compliance with safety rules.
Our machine park includes
- Plasma cutter - INTECUT - 5
- Band saw – HBS - 1018 W
- Guillotine - RGS 3150×3
- Rolls - RME 70/153
- Rolls - 4R HMS 1270х130
- Press - OMA 666B
- Press - КГ2132
- Lathe - 1М63
- Milling machine - 6Т10
- Laser punching press - Trumpf TruMatic 1000
- Laser engraving machine - LM-30
- Grinding machine - 371М1
- Turning center - Haas ST-20
- Turning center - Haas ST-30Y
- Vertical machining center - Haas VF-5/40XT
- Five-axis machining center - Haas UMS-1000
- Laser - F1530T
Custom metalworking from our company has a number of advantages: extensive experience, convenient logistics (we are located in Kyiv (Obolon district)), highly qualified personnel, and modern equipment.
The cost of services is discussed depending on the complexity and number of parts, so please send your requests to our managers:
Phone: +380 (95) 198-11-35 E-mail: sales@selton.com.ua
